量程 1
|
测量范围:
|
0-1500μm (0-60mils)
|
精确度*: ±1% 或 ±1μm (±0.04mil)
|
|
分辨率:
|
0.1μm: 0-200μm; 0.5μm: 200-500μm; 1μm: 500-1500μm
(0.005mil: 0-8mils; 0.02mil: 8-20mils; 0.05mil: 20-60mils)
|
|
|
|
|
|
|
|
|
|
|
标准
|
直角
|
远端
|
N1 标准
|
|
|
|
|
|
|

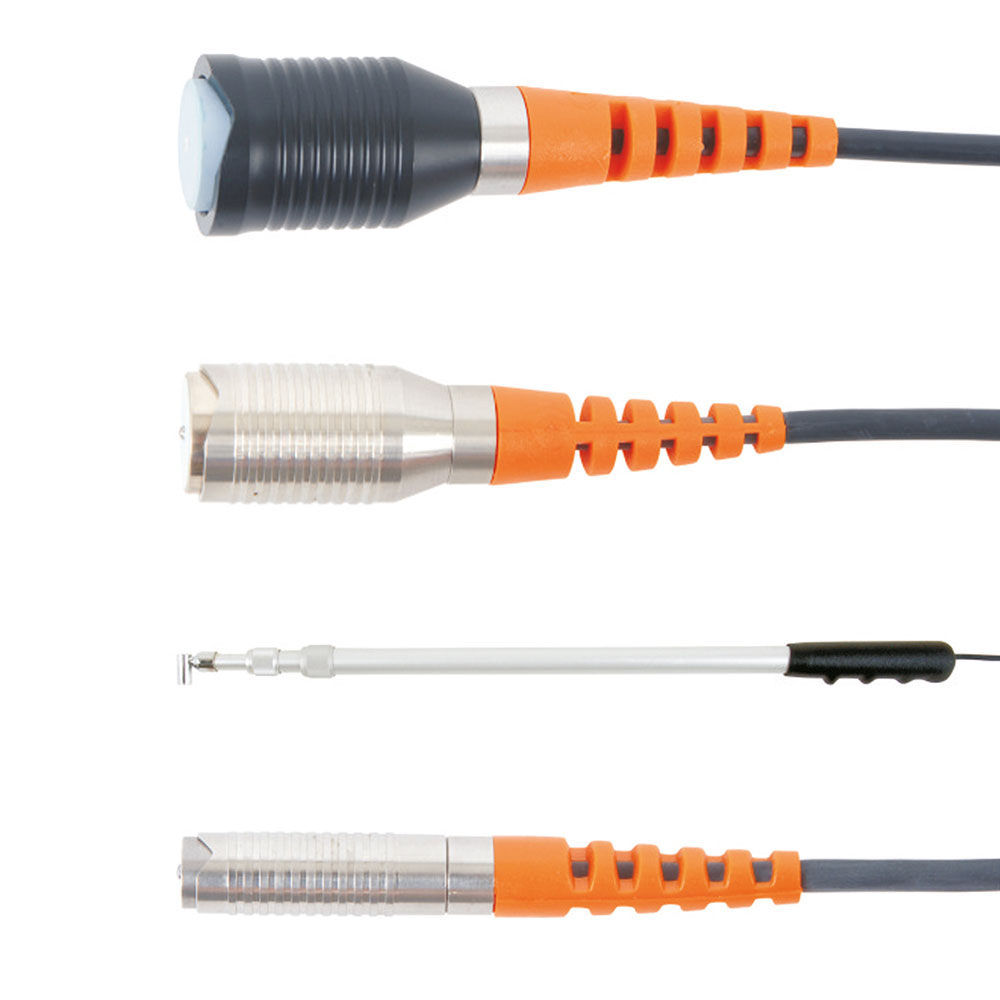

探头样式
|
部件编号
|
最小净空高度
|
最小样本直径
|
证书
|
|
F1 标准
|
T35511952
|
85mm (3.35")
|
6mm (0.24")
|
•
|
|
F1 直角
|
T35511953
|
28mm (1.10")
|
6mm (0.24")
|
•
|
|
F1 远端
|
T35511959
|
30mm (1.18")
|
6mm (0.24")
|
•
|
|
N1 标准
|
T35511982
|
85mm (3.35")
|
8mm (0.31")
|
•
|
|
|
|
|
|
|
|
量程 2
|
测量范围:
|
0-5mm (0-200mils)
|
精确度*: ±1% 或 ±5μm (±0.2mil)
|
|
分辨率:
|
2μm: 0-500μm; 5μm: 500-5000μm (0.1mil: 0-20mils; 0.2mil: 20-200mils)
|
|
|
|
|
|
|
|
|
|
|
F2 标准
|
F2 远端
|
N2 标准
|
|
|
|
|
|
|
|
探头样式
|
部件编号
|
最小净空高度
|
最小样本直径
|
证书
|
|
F2 标准
|
T35511954
|
89mm (3.50")
|
10mm (0.39")
|
•
|
|
F2 远端
|
T35511960
|
36mm (1.42")
|
10mm (0.39")
|
•
|
|
N2 标准
|
T35511984
|
88mm (3.46")
|
18mm (0.71")
|
•
|
|
|
|
|
|
|
|
量程 3
|
测量范围:
|
0-13mm (0-500mils)
|
精确度*: ±2% 或 ±30μm (±1mil)
|
|
分辨率:
|
5μm: 0-1mm; 10μm: 1-13mm (0.2mil: 0-40mils; 0.2mil: 40-500mils)
|
|
|
|
|
|
|
|
|
|
|
F3 标准
|
|
|
|
|
|
|
|
|
|
探头样式
|
部件编号
|
最小净空高度
|
最小样本直径
|
证书
|
|
F3 标准
|
T35511956
|
102mm (4.02")
|
18mm (0.71")
|
•
|
|
|
|
|
|
|
|
量程 4
|
测量范围:
|
0-250μm (0-10mils)
|
精确度*: ±1% 或 ±1μm (±0.04mil)
|
|
分辨率:
|
0.1μm: 0-250μm (0.005mil: 0-10mils)
|
|
|
|
|
|
|
|
|
|
|
F4 标准
|
F4 直角 (长的)
|
N4 标准
|
|
|
|
|
|
|
|
探头样式
|
部件编号
|
最小净空高度
|
最小样本直径
|
证书
|
|
F4 标准
|
T35511950
|
85mm (3.35")
|
4mm (0.16")
|
•
|
|
F4 直角 (长的)
|
T35511951
|
18mm (0.71")
|
3mm (0.12")
|
•
|
|
N4 标准
|
T35511980
|
90mm (3.54")
|
8mm (0.31")
|
•
|
|
|
|
|
|
|
|
量程 5
|
测量范围:
|
0-800μm (0-32mils)
|
精确度*: ±1% 或 ±2μm (±0.08mil)
|
|
分辨率:
|
1μm: 0-800μm (0.1mil: 0-32mils)
|
|
|
|
|
|
|
|
|
|
|
F5 钢筋
|
|
|
|
|
|
|
|
|
|
探头样式
|
部件编号
|
最小净空高度
|
最小样本直径
|
证书
|
|
F5 (钢筋)
|
T35511962
|
85mm (3.35")
|
4mm (0.16")
|
•
|
|
|
|
|
|
|
|
量程 6
|
测量范围:
|
0-25mm (0-1000mils)
|
精确度*: ±2% 或 ±100μm (±4mils)
|
|
分辨率:
|
10μm: 0-5mm, 50μm: 5-25mm (0.5mil: 0-200mils, 2mil: 200-1000mils)
|
|
|
|
|
|
|
|
|
|
|
F6 标准
|
|
|
|
|
|
|
|
|
|
