testo312-4,压差测量仪,型号:testo 312-4,品牌:德国德图TESTO,压差测量仪价格报价

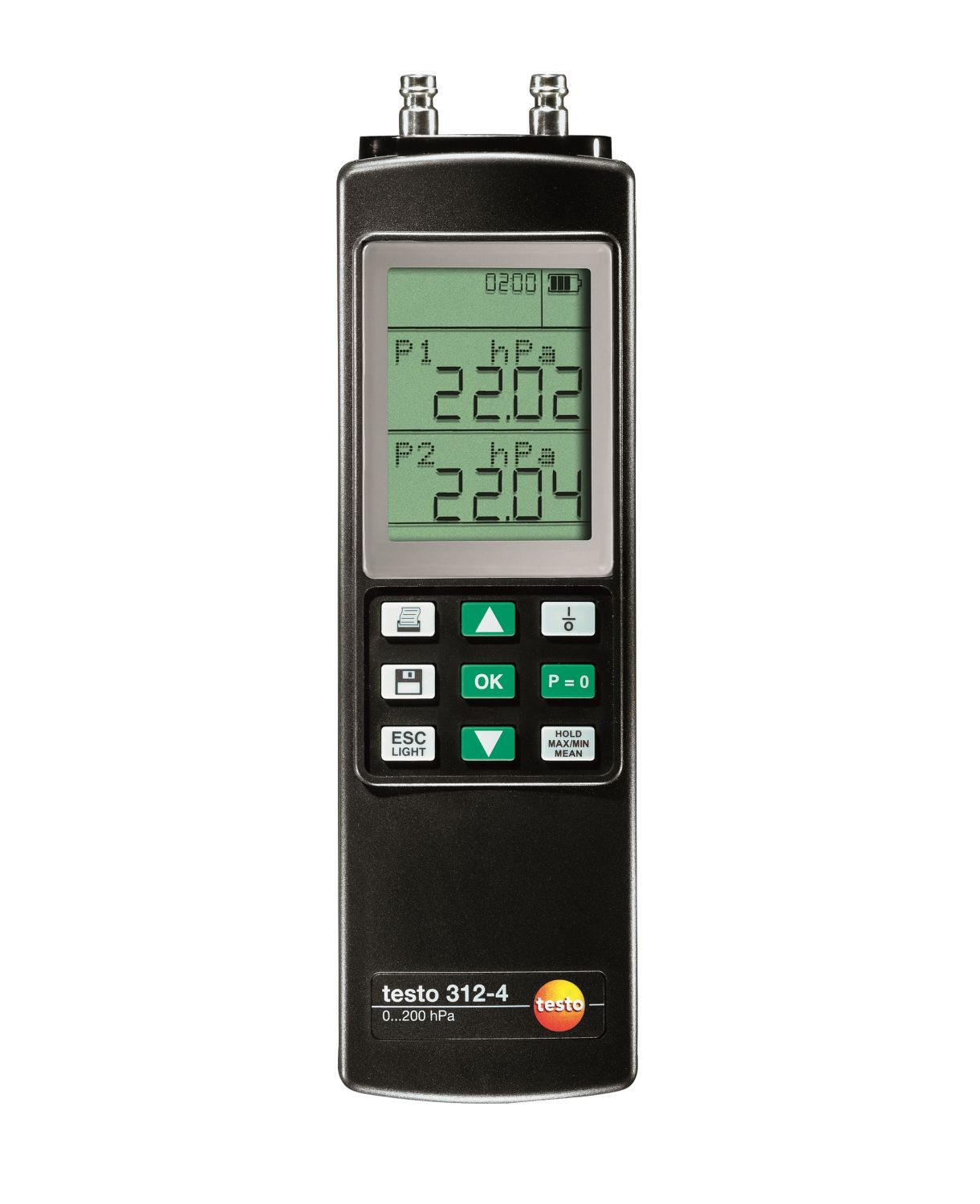

testo 312-4 - Differential pressure measuring instrument

订货号 0632 0327

    Gas-tightness and serviceability test by pressure drop on gas pipes according to DVGW-TRGI 2008

    Load test on gas pipes according to DVGW-TRGI 2008 with the help of the high pressure probe

    Pressure tests on drinking water pipes with water using the high-pressure probe according to DIN 1988 (TRWI) as well as with air accoding to the ZVSHK information sheet

    Pressure test on waste water pipes according to DIN EN 1610

You can carry out all the necessary tests on gas heating systems as well as water and gas pipes with the testo 312-4 electronic differential pressure measuring instrument. Preset measuring processes, for example for load and tightness tests as well as serviceability testing on gas pipes, provide you with ideal support for your work.

产品描述

A variety of directives describe the tests which have to be carried out before commissioning water and gas pipes. The testo 312-4 differential pressure measuring instrument offers measuring processes for load and tightness tests as well as serviceability tests on gas pipes using air. It also enables the checking of static gas and gas flow pressures, as well as the nozzle pressure setting on gas burners or boilers.

These measurements are possible with the testo 312-4 differential pressure measuring instrument

Tightness and serviceability testing by pressure drop on gas pipes in accordance with DVGW TRGI 2008
Load testing on gas pipes in accordance with DVGW-TRGI 2008 using our high-pressure probe (can be ordered as an option)
Pressure testing on drinking water pipes using water and with the support of the optional high-pressure probe in accordance with DIN 1988 (TRWI) and using air in accordance with the ZVSHK information sheet
Pressure testing on waste water pipes using our high-pressure probe (can be ordered as an option)
Checking the gas pressure regulator by recording the readings over a defined period (max. 25,000 readings)
Checking the gas connection and gas flow pressure, as well as setting the nozzle pressure on gas burners and boilers

Practical features of the differential pressure measuring instrument

The testo 312-4 pressure measuring instrument offers a high level of operating convenience in order for you to carry out pressure measurement efficiently – for instance through preset measuring processes or the clear presentation of readings on the large display. The testo fast printer, which can be ordered as an extra, means you can produce measurement data printouts directly on site. The easyheat PC software is available to you as an option for data transfer and evaluation. Furthermore, probes which are also available for various measuring tasks can be attached to the differential pressure measuring instrument (e.g. high-pressure probe or thermocouple probe for temperature measurement).

产品包含

testo 312-4 differential pressure measuring instrument, including battery and calibration protocol.

Type K (NiCr-Ni)

测量范围

dependent on probe type used

测量精度

±0.4 °C (-100 ~ +200 °C)*

±1 °C (其余量程)*

分辨率

0.01 °C

差压(内置传感器)

测量范围

0 ~ 200 hPa

测量精度

±0.03 hPa (0 ~ +3 hPa)

±1.5 %测量值 (+3.1 ~ +40 hPa)

±2 hPa 或 ±1 % 全量程 (41 ~ +200 hPa)

分辨率

0.01 hPa

压力测量(外置探头)

测量范围

0 ~ 25 bar

测量精度

±0.6 % 全量程 (0 ~ 10 bar)

±0.6 % 全量程 (>10 ~ 25 bar)

分辨率

10 hPa

技术参数
重量	600 g
直径	219 x 68 x 50 mm
红外打印机	红外界面
保修	2年
测量比例	auto 1 s to 24 h; fast 0,04 s
数据传送	RS 232
PC软件	Easyheat
内存	25,000 测量值
