    UBA-9210 射频场强分析仪
    型 号:UBA-9210
    品 牌:进口
    技术指标:Accuracy ±2.0dB(at an ambient of temperature of (23℃±3℃: UBA-9210)

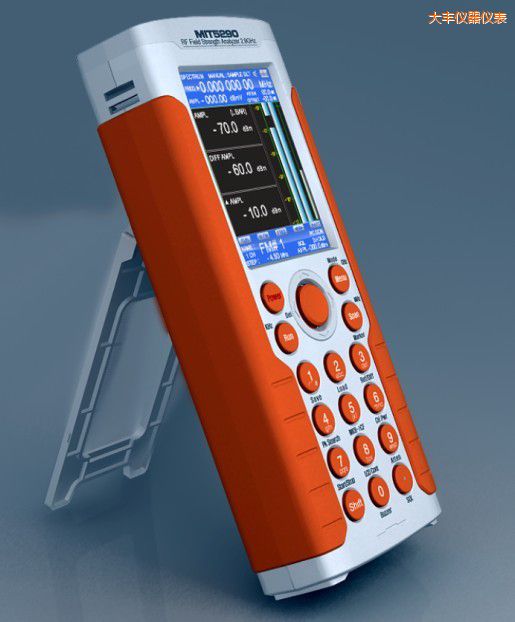

    大丰UBA-9210 射频场强分析仪-UBA-9210-进口
    UBA-9290(2.9GHz)/9210(2.1GHz)
    RF Field Strength Analyzer Specifications
    Specifications
    Frequency Range 100㎑ to 2900㎒(2.9GHz) // 100㎑ to 2100㎒(2.1GHz)
    Accuracy TCXO : ±2.5PPM
    Reception Sensitivity Approx. 0 - 6 dBu EMF (S/N : 10dB at W-FM, 12dB at N-FM)
    Step Range Multiples of 5㎑ & 6.25kHz
    Span Range 1MHz to Max.1000MHz (1,2,5 Step / at 200CH)
    Amplitude(Level) N-FM Range -32dBm to -117dBm for 1MHz to 2900MHz (UBA-9290)
    -67dBm to -117dBm for 1MHz to 2100MHz (UBA-9210)
    Resolution ±0.1dB
    Accuracy ±2.0dB(at an ambient of temperature of (23℃±3℃: UBA-9290)
    ±2.5dB(at an ambient of temperature of (23℃±3℃: UBA-9210)
    Repeatability ±2dB
    Bandwidth N-FM: Apprx 12.5㎑(-6dB)
    W-FM/AM/SSB Range -22dBm to -107dBm for 10MHz to 2900MHz (UBA-9290)
    -57dBm to -107dBm for 1MHz to 2100MHz (UBA-9210)
    Resolution ±0.1dB
    Accuracy ±2.0dB(at an ambient of temperature of (23℃±3℃: UBA-9290)
    ±2.5dB(at an ambient of temperature of (23℃±3℃: UBA-9210)
    Repeatability ±2dB
    Bandwidth W-FM: Apprx 180㎑(-6dB), AM/SSB: Appex 2.4㎑(-6dB)
    Spurious and Noise Level Internally Generated : -35dBc W-FM
    : -45dBc for N-FM Typical, Below a Full Scale Signal Level Frequency.
    Input Impedance 50Ω (Standard)
    Max. Input Voltage Max. 5V RMS
    Level Units dBm, dBmV, dBuV
    Reference(Internal Atten. Max 35dB : Only UBA-9290) -22dBm(W-FM/AM/SSB : 35dB), -32dBm(N-FM : 35dB)
    -27dBm(W-FM/AM/SSB : 30dB), -37dBm(N-FM : 30dB)
    -37dBm(W-FM/AM/SSB : 20dB), -47dBm(N-FM : 20dB)
    -47dBm(W-FM/AM/SSB : 10dB), -57dBm(N-FM : 10dB)
    Functions Display Modes Spectrum Display
    Multi Bar Graph Display (5, 10, 20, 50, 100, 200 CH)
    Single Bar Graph Display
    Difference Frequency Display
    Frequency Counter
    Sweep & Hold Modes Free Run, Single Run
    Squelch Delay(Run, Hold, Stop)
    Squelch Max. Hold
    Scan Modes Manual, Search Scan & CH. Memory
    Marker Marker, Delta Marker, Peak Search, Marker Center
    Sweep Speed Min.500msec
    Trigger Source Narrow FM/ Wide FM/AM/SSB
    Memory Trace Storage 100 Waveforms
    Setup Storage
    Display Type 3.5 inch TFT Color LCD
    Display Resolution 320(RGB)×240
    LCD Backlight ALWAYS ON(White LED)
    Frequency Counter Range 9㎒ ~ 2900㎒
    RF Input Connector BNC Type Female, 50ohms(Standard)
    Digit / Resolution 7 Digit / 1㎑
    Accuracy ±50PPM, ±1 Count
    Sampling Time 0.512 sec.
    Input Sensitivity 9㎒ ~ 2000㎒ : 150㎷ RMS
    20㎒ ~ 1000㎒ : 100㎷ RMS
    2001MHz ~ 2900MHz : 400mV RMS
    Power Power Source (1.2V)AA Type Ni-MH Rechargeable Battery × 6pcs
    / Alkaline Battery × 6pcs
    Power Adaptor SMPS Type AC Adaptor (9V)
    Auto Power OFF/ 5min/ 10min/ 20min/ 30min
    Other Jog S/W Multi Function Switch(4-direction, Center push)
    Interface USB
    Interface(Speed) 4800, 9600, 14400, 19200, 38400, 57600, 76800
    115200, 153600, 250000 bps
    Audio Output 1W into 8Ω Speaker
    Physical Specifications Operation Temperature & Humidity 0℃ to 40℃ at 35-85% RH
    Storage Temperature 10℃ to 50℃
    Dimension 82(W) × 205(H) × 36(D)mm
    Weight Approx. 395g (Except Antenna, Battery)
    Accessories Standard Carrying Case
    Antenna(Receive Only)
    Manual
    BNC to BNC
    Earphone
    Ni-MH Rechargeable Batteries
    AC/DC Adapter
    N-Type to BNC Adapter
    USB Cable
    Carrying Strap
    GUI Software
    Optional Attenuator (10dB, 20dB, 30dB, 40dB)

    UBA-9290/UBA-9210射频场强分析仪技术参数:
